200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed
Product Description
RCS200W is a compact trailer-mounted drilling rig designed for well construction in a variety of geological conditions. The top uses advanced hydraulic drive technology, which works with mud pumps and air compressors for rotary or DTH (deep hole) drilling. The rig is optimized for drilling depths up to 200 meters and is suitable for applications such as agricultural irrigation, domestic water supply, geothermal facilities and exploration wells.
Technical data
| Model | RCS200W |
| Geology drilled | All kinds |
| Drill depth | 200 m |
| Drilling Diameter | 90 -300mm |
| Drill system and operation | Hydraulic |
| For rock | 6-20F |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Rotary head | |
| Rotation Torque | 4000-5000N.m |
| Rotation speed | 80-200rpm |
| Lifting capacity | 14000KGS |
| Pull down capacity | 4000KGS |
| DRILL PIPE | |
| Drill pipe length | 2 meter |
| Drill pipe diameter | 60/76/89 mm |
| MUD PUMP | |
| Flow capacity | 160 liter/min |
| working pressure | 1.3MPA |
| DIMENSIONS | |
| Transport size | 2300*1200*1700mm |
| Weight | 2300KGS |
| Diesel engine | |
| Power | 45KW Weifang Hengtong |
Key Features
Hydraulic Efficiency
The fully hydraulic drive system ensures smooth operation with minimal mechanical failures.
The rotary drive of the top head is compatible with DTH hammers and conventional rotary drilling methods.
Adaptable Drilling Fluids
Compatible with air circulation, foam or mud to suit a wide range of soil conditions, including hard rock and loose sediments.
Mobility and Portability
The two-wheel trailer design makes it easy to transport with a standard pickup truck.
The platform has a total weight of 2300 kg, ensuring fast installation in remote or hard-to-reach locations.
Power Flexibility
Diesel engine operation eliminates dependence on grid electricity, making it ideal for off-grid areas.
Compact and Durable
Its modular design simplifies maintenance and reduces downtime.
The rugged frame is able to withstand tough off-road conditions while maintaining a compact size.
Product Tags:
|
|

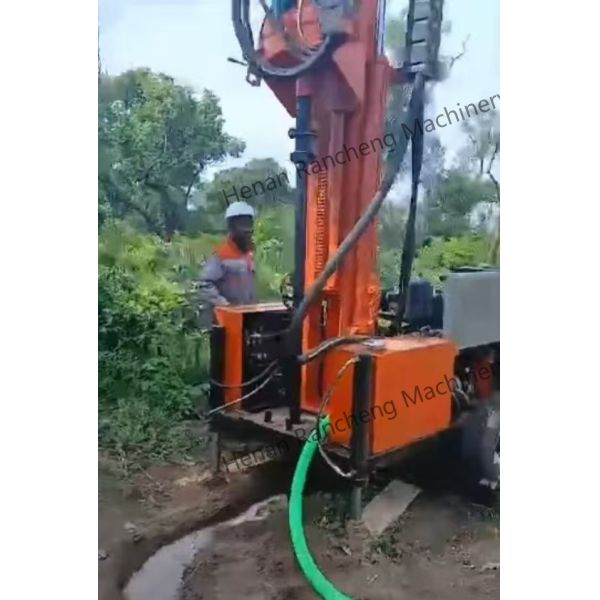

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed Images
|
