High Quality Multifunctional Crawler Borehole Artesian Wells 200m Water Well Drilling Rig Machine
Machine Description
RCF260C deep water well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed.
The speed, torque, thrust shaft pressure, reverse shaft pressure, thrust speed and lifting speed of the water well drilling rig can be adjusted at any time to meet the requirements of different drilling tool conditions and different construction processes.
Top drive rotary thrust lifting allows for easy installation and removal of drill rods, shortens auxiliary time, and facilitates convenient drilling with rods. The air down-the-hole drilling and mud pump circulation create a multifunctional drilling process. The drilling rig chassis can be equipped with mud pumps, foam pumps, and generators.
Technical Parameters
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 260m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 15T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 4000-5300Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 200L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.85×2.3M |
| Weight | 6500Kg |
| Diesel engine | 70KW FAW engine |
Application
Our water well drilling rigs are mainly used for drilling in projects such as resource exploration, hydrological wells, civil water wells, and agricultural irrigation.
Our Service
Provide 24/7 online chat and phone services to ensure that customers are always available to solve problems and provide support. In addition, lifetime free technical support is provided, allowing customers to enjoy continuous help and guidance during use. For overseas customers, we also provide overseas services and can dispatch engineers to provide support and services as needed to ensure that customers can enjoy high-quality services around the world.

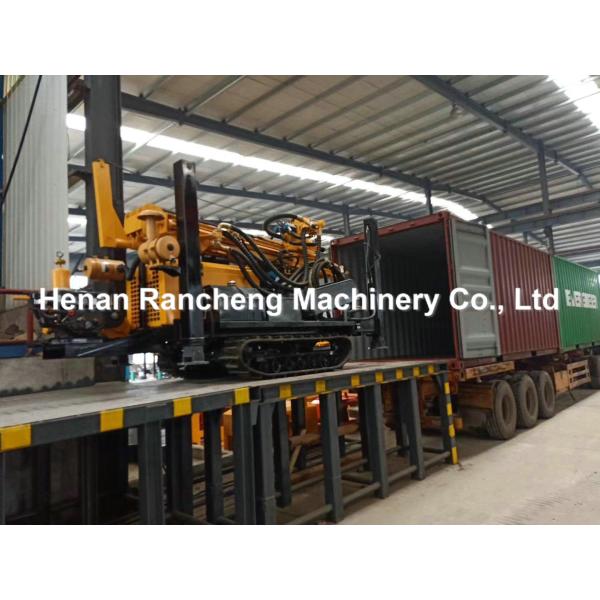

Machine picture display
