High Efficiency Low Price 200m Depth Crawler-Mounted Water Well Drilling Rig Machine
Product Description
This versatile down-the-hole pneumatic water well drilling rig offers a perfect blend of efficiency and adaptability. It features dual motors for top rotation and is compatible with both mud pumps and air compressors. Capable of drilling up to 200 meters deep, it handles diameters ranging from 100 to 300 mm. Powered by a robust 58KW diesel engine, this rig is built to perform in various ground conditions, including hard rock, clay, soil, and sand. Its hydraulic rubber crawlers provide excellent maneuverability, while the four 1.7-meter-high hydraulic outriggers make truck transportation more convenient.
Application
This water pump is mainly used for drilling wells for irrigation, household drinking water, geothermal wells, hydrological wells, civil water wells, industrial wells, etc.
Technical Parameters

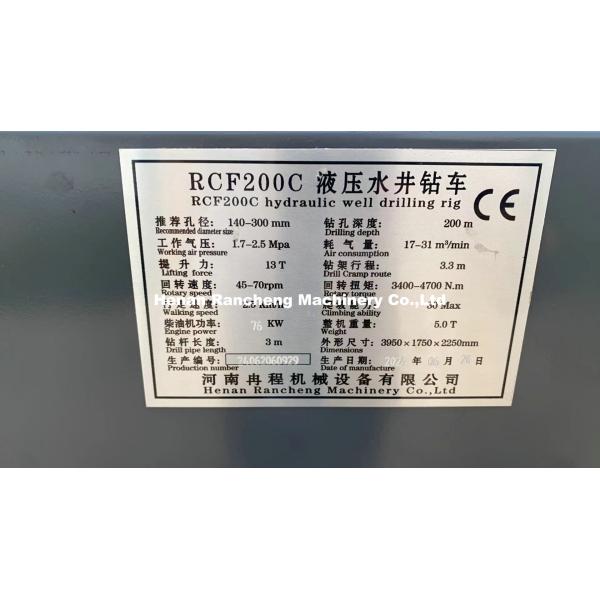

| Model | RCF200C |
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 200m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 3500-4800Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4000X1800X2300mm |
| Weight | 5000Kg |
| Diesel engine | 58KW Yuchai |
Product advantages
This rig boasts remarkable drilling power, easily penetrating rocks and soil layers with ease. Built to exacting manufacturing standards, it ensures exceptional durability and long-term performance. Its efficient power system reduces fuel consumption, while the compact and adaptable design enhances portability. Advanced safety features and adherence to environmental standards add to its overall appeal. In summary, it’s an excellent choice for drilling professionals who prioritize both reliability and high performance.

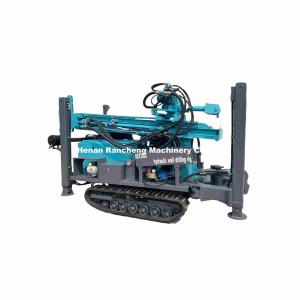

Machine picture display
FAQ
1.Why choose us ?
Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11 years.Now our products are serving around the world.we have High Quality, Competitive Price, and Fast Shipment.
2.Do you offer any custom designs?
Yes,we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
3.How To Order ?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
4. When will make delivery ?
About 10-15 work days after receipt of the payment.
5.After-sales Service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
6.whether we can visit your factory
Yes ,you are warmly welcome to visit us .
